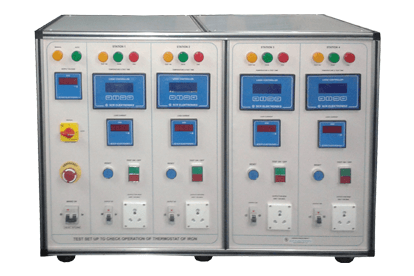

SCR Elektroniks make panel is designed mainly to test thermostat of an iron for its tripping characteristics like trip temp and trip time.
Measurement Accuracy(Voltage) : 1% +- 5 count.
Input Supply : AC 230V 50/60 Hz +/-10%
Test parameters are programmable.
Limit for set temperature as well as tripping time will be provided for fault Detection.
Digital Voltmeter – 0 to 300V AC – 1 No.
Digital Ammeter – 0 to 10.00Amp AC – 4 Nos.
Digital Temperature Indicator with hold facility to detect the cut OFF temperature of Iron.
High cut OFF set facility with pass/fail indication – 4 sets.
Pass/Fail lamps for each stations.
Output ON 16A socket with MCB.
Contactors & Push buttons for making ON/OFF the output – 4 sets
Analog timer to set total ON time of Iron – 4 Nos.
'K' type thermocouple sensor to sense the temperature of sole plate – 4 Nos.
The tester can be customized with respect to number of stations and current, temperature range
The test bench tests the thermostat characteristics such as cut off temperature of the domestic iron by measuring temperatures at various points on the sle plate
