The product is designed to test all the relevant safety and performance tests of the LED and its components. It is equipped with output terminal plates for all the three components - LED driver, lighting PCB and complete LED luminaire

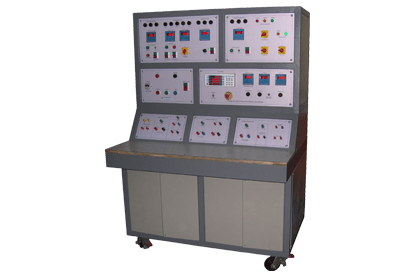

PC Based Comprehensive Test Setup for Luminaires

Routine Test

Our zest for innovation has resulted in continuous upgrades in the existing line of products. Till now we used to manufacture 3 different equipments for Driver, MCPCB and Luminaires Component testing. We at SCR Elektroniks have developed our comprehensive tester to incorporate all the 3 systems in a single bench. Here in this tester one can test all the three DUT in a single bench. Since all the 3 testing procedures have many tests in common, we have incorporated all the tests in a single bench such that testing of Luminaire driver, Luminaire PCB and Final Luminaire set is performed in single test bench. Only these tests are performed over the DUT else other are disabled for them.
