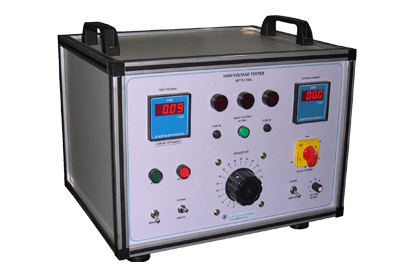

The high Voltage also known as di-electric withstand tester comes with customized facilities like voltage rampup rate zero interlock, Plus the user may specify the voltage level and leakage milliampere level so as to suit its testing needs.
Safety factors : Zero Interlock bypass facility, timer bypass facility
Speciality Transformer Type: Epoxy cast HV Transformer for user safety
Specially Designed probes provided for user safety
Input Supply : 230 V AC, +/- 10 %
Test Voltage : 0 - 5 KV AC
Tripping : 5 mA, 10 mA, 25 mA, 50 mA, 100 mA, 200mA
Time Setting : 0 - 60 Sec
Voltage Indication : Digital LED, 0 - 5 KV
Current Indication : Digital LED, 0 - 200 mA
Lamp Indication: a) HT On b) OK c) NOT OK (fault)
HVT - 3 - 3 KV/100mA
HVT - 5 - 5 KV/100mA (500 SC)
HVT - 10 - 10 KV/200mA
HVT - 25 - 25 KV/50 mA
HVT - 50 - 50 KV/50 mA
HVT - 75 - 75 KV/50 mA
HVT - 100 - 100 KV/50 mA.
Other than those mentioned above, the kilovolt and mA level can be custom-made. In case of routine testing solution employing mechanical test jigs, the number of MCBs (to be tested simultaneously) can be customized as 1, 4 and 20.
The tester is used to assess the insulation characteristics of the LED and LED components
