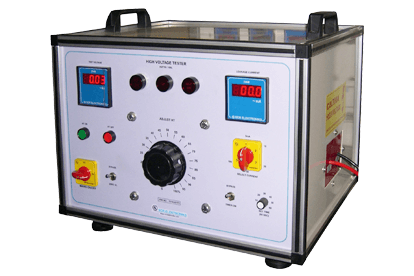

The high Voltage also known as di-electric withstand tester comes with customized facilities like voltage rampup rate zero interlock, Plus the user may specify the voltage level and leakage milliampere level so as to suit its testing needs.
Specially Designed probes provided for user safety
Safety factors : Zero Interlock bypass facility, timer bypass facility
Speciality Transformer Type: Epoxy cast HV Transformer
Voltmeter in the panel indicates the magnitude of the High Voltage and Current Meter indicates the Leakage Current.
If the Insulation breaks down, the High Voltage supply is immediately cut off in order to prevent further damage to the equipment under test or to the testing unit.
Input Supply : 230 V AC, +/- 10 %
Test Voltage : 0 - 10 KV AC
Tripping : 5 mA, 10 mA, 20 mA, 50 mA, 100mA
Time Setting : 0 - 60 Sec
Voltage Indication : Digital LED, 0 - 10 KV AC
Current Indication : Digital LED, 0 - 100 mA AC
Lamp Indication : a) HT On b) OK c) NOT OK (fault)
1. HVT - 3 - 3 KV/100mA
2. HVT - 5 - 5 KV/100mA (500 SC)
3. HVT - 10 - 10 KV/200mA
4. HVT - 25 - 25 KV/50 mA
5. HVT - 50 - 50 KV/50 mA
6. HVT - 75 - 75 KV/50 mA
7. HVT - 100 - 100 KV/50 mA
The test bench tests the di-electric withstand capability of the product with settable high voltage and allowable leakage current
