The high Voltage also known as di-electric withstand tester comes with customized facilities like voltage rampup rate zero interlock, Plus the user may specify the voltage level and leakage milliampere level so as to suit its testing needs.
Modes: Manual, Auto, Programmable
Specially Designed probes provided for user safety
Safety factors: Zero Interlock
Speciality Transformer Type: Epoxy cast HV Transformer for user safety
If the Insulation breaks down, the High Voltage Supply is immediately cut off in order to prevent further damage to the equipment under test or to the testing unit
Input- 230 VAC, 32Amps, Single Phase, 50Hz
Digital Voltmeter – 3 ½ digit having range 0 to 50.00 KV AC
Digital Current Meter –3 ½ digit having range 0 to 50 mA AC
Time setting – 0 to 99 seconds
Temperature Controller (DTC204) - 0 to 200˚C
Tripping threshold – 3 mA, 5 mA, 10 mA, 25 mA, and 50 mA
Indicator Lamps – HT ON, PASS , FAIL

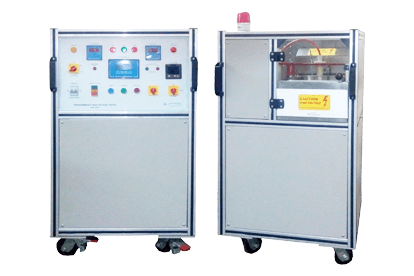

A.C. HIGH VOLTAGE TESTER
1. PHVT-3 - 3 KV/100mA 2. PHVT-5 - 5 KV/200 mA 3. PHVT-10 - 10 KV/200mA 4. PHVT-25 - 25 KV/50 mA 5. PHVT-50 - 50 KV/50 mA 6. PHVT-75 - 75 KV/50 mA 7. PHVT-100 - 100 KV/50 mA The PHVT model is available with PC based software or othersThe test bench tests the di-electric withstand capability of the product with settable high voltage and allowable leakage current. The voltage set can be ramped up slowly with a settable ramp up time so that the user can exactly find the voltage level at which the insulation breakdown takes place
