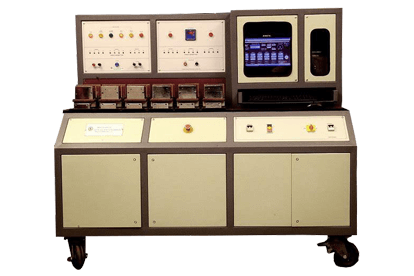

The SCR Elektroniks production test bench for factory testing of contactors is used to test a variety of electrical parameters and compliance verification for the contactors. This single bench conducts nearly all of the electrical tests that are relevant to the contactor prescribed by various versions of IEC 60947. The tests are conducted in a sequential manner on more than one station at a time thus testing multiple contactors simultaneously.
Can test 6 contactors in less than 3 minutes on a 6 station test bench.
Specially designed jigs for ease and operator safety (can be integrated on an automated assembly).
PC based Testware enables the entire test sequence and test parameters to be programmed and controlled by customizable Testware running on PC.
Report generation in excel format.
Hardware interlock provided for H.V. and L.V.
Semi skilled operator friendly
Reporting for Data Analysis.
Test Bench suitable for testing contactors (3/4 pole contactor with or without an auxiliary contact) with coil voltage customizable for 24 V, 42 V, 48 V, 110 V, 220 V, 240 V, 360 V, 380 V, 415 V, 440 V & 525 V AC.
Pick up, Drop off voltage go, no-go values settable in the above range.
H.V. Source module customizable for upto 3 kV, 50 mA.
The product can be customized w r t voltage, coil current and wattage range, HV value as well as number of stations. Additionally, millivolt drop can be measured across contacts.
The test bench tests and measures various parameters of the given tests: Flashing and continuity test, coil current and wattage measurement test, pick up and drop off test, and high voltage test.
