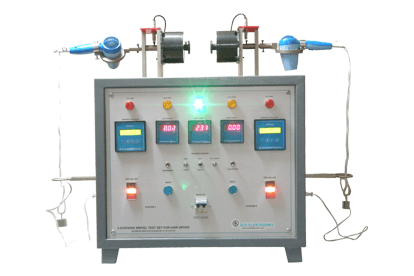

SCR Elektroniks make CORD SWIVELING TEST SET UP FOR HAIR DRYER & HAIR STRAIGHTENER is used to test the Electrical accessories / appliances for their mechanical strength. Operate appliances Hair dryer or Hair straightener at rate voltage. Position appliances swivel with connection with major axis horizontal ,supply cord hanging vertically with 1N pull force. Rotate the appliance around its major axis,20 Revolutions clockwise & 20 Revolutions anti-clockwise.
Programmable rotation count
Fast and Automatic Operation
Motor Driver Controller with adjustable speed.
Input Supply: 230V/32A AC + / - 10%, 50Hz
Each Stations Output Socket 240V/8A Max. 4 nos.
Digital Programmable Timer TMPR-21 to carry out the test sequence.
Digital Ammeter to display the current of Hair straightener/Hair dryer
Micro Controller based System
5 digit LED Display to display time & settings
Membrane keys for Settings
Total no. of cycles programmable from 1 to 99999.
Forward and reverse rotation count is programmable from 1 cycle to 99 cycles.
The tester can be customized with number of staions as also PC based or otherwise
The test bench tests swivelling characteristics of the hair dryer
