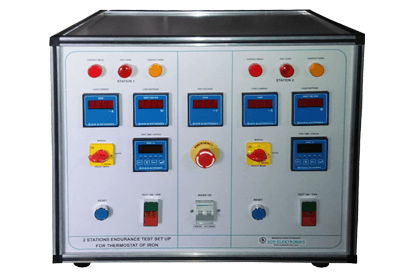

SCR ELEKTRONIKS have developed 4 STATIONS ENDURANCE TEST SETUP FOR THERMOSTAT OF IRONwhich is used for carrying out endurance test for thermostat of iron for the required amount of time It is very useful and handy in line testing on Mass production line as well as type Testing. It consists of Voltmeter, Wattmeter, Programmable Logic Controller( PLC ). The equipment continuously monitors faults like Contact weld and Contact Open. The other important feature is we can operate the panel in Auto Mode or Manual mode. User friendly operations make the equipment to be handled easier for any operator. This manual contains information about operating instructions and maintenance of the equipment.
Micro Controller based programmable timer.
Lamps to indicate Fault conditions
TEST OVER indication with Alarm at the end of the tests.
Lamp Indication for both the stations a. Test ON b. Contact Open c. Contact Weld d. Test Over
Digital Voltmeter – 0 to 300V AC – 4 Nos.
Digital Ammeter – 0 to 10.00Amp AC – 4 Nos.
Digital Wattmeter - 0 to 2000W AC. - 4 Nos.
Digital Timer to set ON time and to store ON/OFF cycles of the thermostat. - 1 No.
The ON/OFF operation of iron will be detected by current sensing and the cycles will be displayed on Digital Display. One can set maximum no, of cycles (0 to 9999) or ON Time, after this the test will be terminated. Incase the welding of contact i.e. It is on for long time without OFF condition or for contact i.e. No current for long time. The test will be terminated declaring Fail.
Contact Weld & Open Detection and indication circuits – 4 sets.
Input supply 240V AC (From Mains Supply directly) with MCB protection.
Output on 6 pin 16A sockets with 1 pole MCB protection. - 4 Nos.
Contactors for making ON/OFF the output – 4 Nos.
Bajaj, Havells, Philips, Elin Appliances, Maharaja Whiteline, Eveready
The tester performs endurance test of the iron w r t the pre-set parameters. The test bench checks for two failure conditions - Contact Weld (passage of current during off time) and contact open (interrupted current during on time)
